SOLVED-Uniforms the color of text fields borders color for the buttons

EDIT:
I changed the title to insert "SOLVED" but there is not enough space to insert [SOLVED]

Let's see the following image (LibreOffice as example, but is the same elsewhere):

In ~/.config/gtk-3.0/gtk.css I set

entry {
    background: #232323;
    border-color: #004ed1; /*indicated by green arrow */
    border-radius: 0;
    border-width: 2px;
}
entry:backdrop {
    background: #232323;
    border-color: #4c4c4c;
    border-radius: 0;
    border-width: 2px;
}

And in facts, the text boxes are following these directive; how can achieve the same as shown in the screenshot (pointed by the red arrow) for the drop-down buttons?

Last edited by D.dave (2021-05-18 13:42:03)

ToZ

Administrator

From: Canada

Registered: 2011-06-02

Posts: 11,486

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

It's a combo widget. Just append ".combo" after entry:

entry, .combo {
    background: #232323;
    border-color: #004ed1; /*indicated by green arrow */
    border-radius: 0;
    border-width: 2px;
}
entry:backdrop, .combo:backdrop {
    background: #232323;
    border-color: #4c4c4c;
    border-radius: 0;
    border-width: 2px;
}

---

Please remember to mark your thread [SOLVED] to make it easier for others to find
--- How To Ask For Help | FAQ | Developer Wiki  |  Community | Contribute ---

D.dave

Member

Registered: 2019-12-06

Posts: 58

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

Perfect, has been applied in LibreOffice.
However in some place is not applied, like, eg. in Gedit:

Should I have to set something else?

ToZ

Administrator

From: Canada

Registered: 2011-06-02

Posts: 11,486

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

gedit isn't using combo boxes there. Running "GTK_DEBUG=interactive gedit" and searching through the widget tree will get you to revealer widget:

Sub to that is the entry plus the two buttons. One way to get at this would be:

revealer button {
    background: #232323;
    border-color: #004ed1; /*indicated by green arrow */
    border-radius: 0;
    border-width: 2px;
}

---

Please remember to mark your thread [SOLVED] to make it easier for others to find
--- How To Ask For Help | FAQ | Developer Wiki  |  Community | Contribute ---

D.dave

Member

Registered: 2019-12-06

Posts: 58

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

Thank you again; you are very expert :-)

In anyway, since this method is more selective, I'd like to also exactly tweaks these buttons in LibreOffice; I launched it by:

GTK_DEBUG=interactive libreoffice --writer

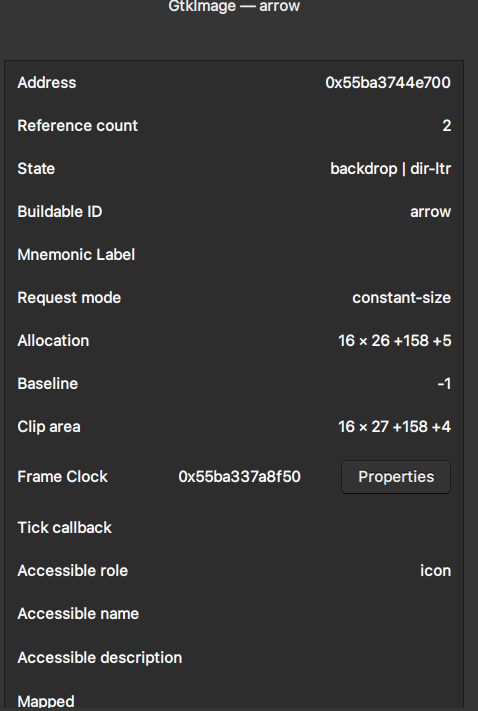

And by using the selector on the  LibreOffice's buttons, I got:

And I thought that I had to put, in gtk.css:

arrow icon {
    background: #232323;
    border-color: #004ed1; /*indicated by green arrow */
    border-radius: 0;
    border-width: 2px;
}

But had no effect. How can elaborate the exact name and class? I have no clue.

Last edited by D.dave (2021-05-18 00:59:33)

ToZ

Administrator

From: Canada

Registered: 2011-06-02

Posts: 11,486

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

In the dropdown to the left (not displayed in your image), it is currently set to "Miscellaneous". Change that to "CSS Nodes" to see the widget hierarchy:

Now it depends on what you want to do. Based on the snippet from your previous post, maybe:

.combo image {
    background: #232323;
    border-color: #004ed1; /*indicated by green arrow */
    border-width: 2px;
    border-style: solid;
}

...note: border-style was none and needed to be changed for it to be visible.

It's important to understand that when you use just ".combo", it will affect all combo boxes in the UI (not just libreoffice). If you scroll up through the CSS Nodes list you'll note that there is no style class or widget ID that lets you directly target only the libreoffice application.

---

Please remember to mark your thread [SOLVED] to make it easier for others to find
--- How To Ask For Help | FAQ | Developer Wiki  |  Community | Contribute ---

D.dave

Member

Registered: 2019-12-06

Posts: 58

Re: SOLVED-Uniforms the color of text fields borders color for the buttons

It's important to understand that when you use just ".combo", it will affect all combo boxes in the UI (not just libreoffice)

In facts; for this I aimed to targeting libreoffice.

However: you solved the subject of this thread and I mark it as solved.

Many thanks.
