"Screen" trackpad

Hello everyone,

I recently got a computer (Asus UX5400E). I'm very happy with it and XFCE works great for most of what I want.
There's however one glitch and I was wondering if someone could propose a solution.
The computer comes with a weird feature - the trackpad has a small screen behind it.
As it's not very well supported on Linux, and as I want to save battery life, I have it disabled plain and simple (in display settings).
It works fine until the computer goes to sleep - but when waking up, the screen behind the trackpad becomes active again.
Also, when booting and selecting a session (I use SDDM) the trackpad screen is always active - I'd like it to be disabled as early as possible.

This is the result of `lspci`:

0000:00:00.0 Host bridge: Intel Corporation 11th Gen Core Processor Host Bridge/DRAM Registers (rev 01)
0000:00:02.0 VGA compatible controller: Intel Corporation TigerLake-LP GT2 [Iris Xe Graphics] (rev 01)
0000:00:04.0 Signal processing controller: Intel Corporation TigerLake-LP Dynamic Tuning Processor Participant (rev 01)
0000:00:07.0 PCI bridge: Intel Corporation Tiger Lake-LP Thunderbolt 4 PCI Express Root Port #0 (rev 01)
0000:00:07.1 PCI bridge: Intel Corporation Tiger Lake-LP Thunderbolt 4 PCI Express Root Port #1 (rev 01)
0000:00:08.0 System peripheral: Intel Corporation GNA Scoring Accelerator module (rev 01)
0000:00:0a.0 Signal processing controller: Intel Corporation Tigerlake Telemetry Aggregator Driver (rev 01)
0000:00:0d.0 USB controller: Intel Corporation Tiger Lake-LP Thunderbolt 4 USB Controller (rev 01)
0000:00:0d.2 USB controller: Intel Corporation Tiger Lake-LP Thunderbolt 4 NHI #0 (rev 01)
0000:00:0e.0 RAID bus controller: Intel Corporation Volume Management Device NVMe RAID Controller
0000:00:14.0 USB controller: Intel Corporation Tiger Lake-LP USB 3.2 Gen 2x1 xHCI Host Controller (rev 20)
0000:00:14.2 RAM memory: Intel Corporation Tiger Lake-LP Shared SRAM (rev 20)
0000:00:14.3 Network controller: Intel Corporation Wi-Fi 6 AX201 (rev 20)
0000:00:15.0 Serial bus controller: Intel Corporation Tiger Lake-LP Serial IO I2C Controller #0 (rev 20)
0000:00:15.1 Serial bus controller: Intel Corporation Tiger Lake-LP Serial IO I2C Controller #1 (rev 20)
0000:00:16.0 Communication controller: Intel Corporation Tiger Lake-LP Management Engine Interface (rev 20)
0000:00:1c.0 PCI bridge: Intel Corporation Device a0b8 (rev 20)
0000:00:1c.3 PCI bridge: Intel Corporation Device a0bb (rev 20)
0000:00:1d.0 System peripheral: Intel Corporation Device 09ab
0000:00:1f.0 ISA bridge: Intel Corporation Tiger Lake-LP LPC Controller (rev 20)
0000:00:1f.3 Multimedia audio controller: Intel Corporation Tiger Lake-LP Smart Sound Technology Audio Controller (rev 20)
0000:00:1f.4 SMBus: Intel Corporation Tiger Lake-LP SMBus Controller (rev 20)
0000:00:1f.5 Serial bus controller: Intel Corporation Tiger Lake-LP SPI Controller (rev 20)
0000:58:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS522A PCI Express Card Reader (rev 01)
10000:e0:1d.0 PCI bridge: Intel Corporation Tiger Lake-LP PCI Express Root Port #9 (rev 20)
10000:e1:00.0 Non-Volatile memory controller: SK hynix Gold P31 SSD

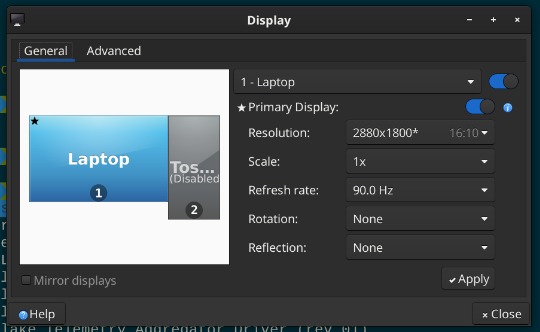

Also attached is a screenshot of display management.

Let me know if there's anything I could give in terms of additional information...

Thanks for reading!
Doodloo.

ToZ

Administrator

From: Canada

Registered: 2011-06-02

Posts: 11,485

Re: "Screen" trackpad

Is there a way to disable it in your bios or via a hotkey?

---

Please remember to mark your thread [SOLVED] to make it easier for others to find
